Edit Job File

Now that you've successfully developed the automation to verify the software version on one device, you'll edit the test case to verify the software version on all the devices in your test bed.

Step 1 - Return to the Job File editor

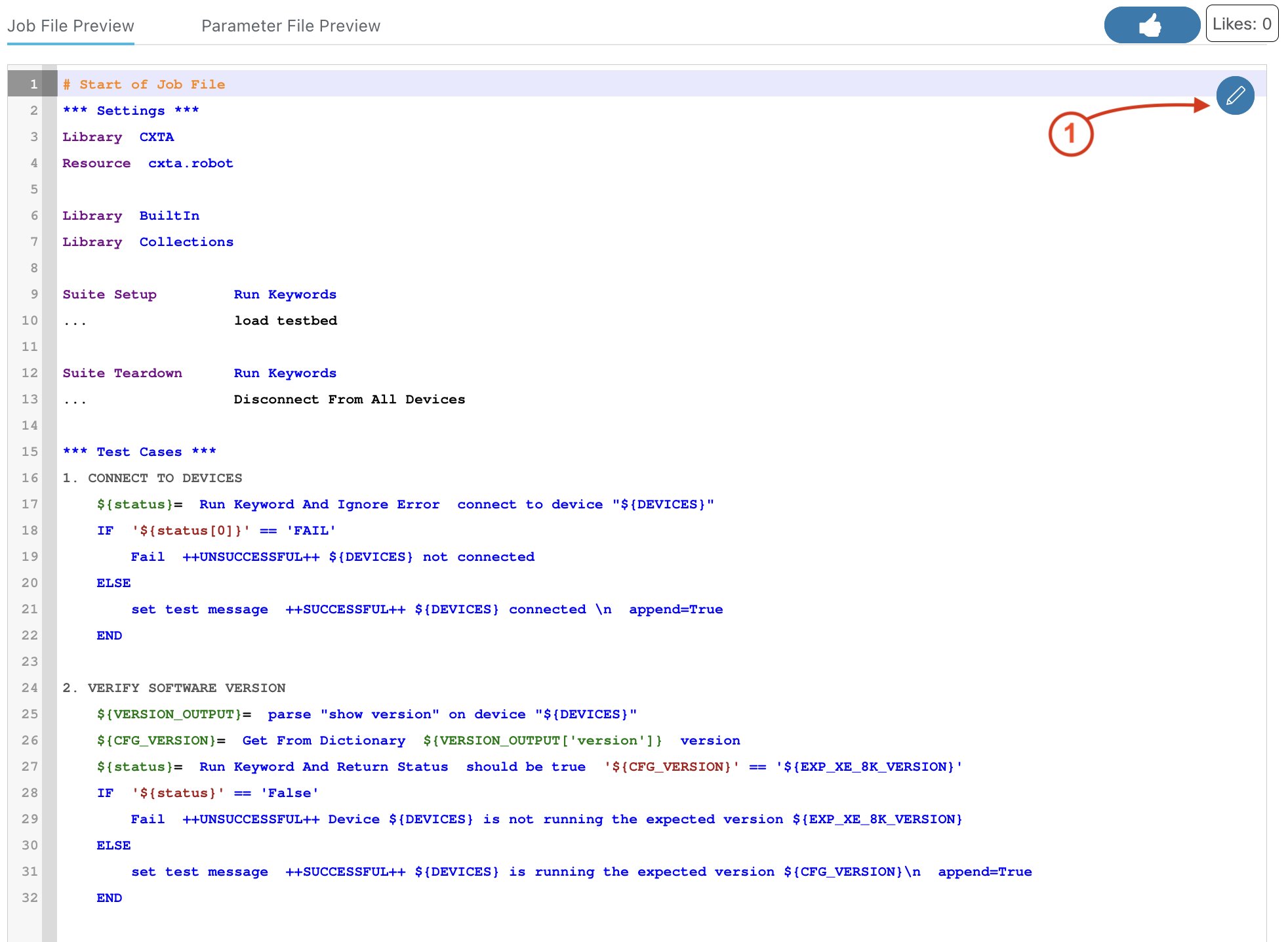

From the Job File page:

Click on the pencil icon in the upper right-hand corner of the Job File Preview pane to return to the editor

Step 2 - Edit the Connect to Devices step to iterate over devices

In order to connect to all the devices in your testbed, you'll just need to make a few simple changes to the Connect to Devices step in your Job File. First, you'll wrap the code in a FOR loop to iterate over a list of devices.

Secondly, since you'll need to change the DEVICES var to a list in the next step, you'll need to ensure that the DEVICES var used in the FOR loop uses the correct Robot Framework variable syntax of @{DEVICES}, prefaced with an "@" sign for a list rather than the syntax of ${DEVICES}, prefaced with a "$" sign for scalar variables.


*** Test Cases ***
1. CONNECT TO DEVICES
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${status}=  Run Keyword And Ignore Error  connect to device "${DEVICE}"
        IF  '${status[0]}' == 'FAIL'
            Fail  ++UNSUCCESSFUL++ ${DEVICE} not connected
        ELSE
            set test message  ++SUCCESSFUL++ ${DEVICE} connected \n  append=True
        END
    END

In the Script Text editor:

Replace lines 17-22 in your Job File with the code in lines 17-24 below


*** Settings ***
Library  CXTA
Resource  cxta.robot

Library  BuiltIn
Library  Collections

Suite Setup         Run Keywords
...                 load testbed

Suite Teardown      Run Keywords
...                 Disconnect From All Devices

*** Test Cases ***
1. CONNECT TO DEVICES
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${status}=  Run Keyword And Ignore Error  connect to device "${DEVICE}"
        IF  '${status[0]}' == 'FAIL'
            Fail  ++UNSUCCESSFUL++ ${DEVICE} not connected
        ELSE
            set test message  ++SUCCESSFUL++ ${DEVICE} connected \n  append=True
        END
    END

2. VERIFY SOFTWARE VERSION
    ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICES}"
    ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT['version']}  version
    ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_XE_8K_VERSION}'
    IF  '${status}' == 'False'
        Fail  ++UNSUCCESSFUL++ Device ${DEVICES} is not running the expected version ${EXP_XE_8K_VERSION}
    ELSE
        set test message  ++SUCCESSFUL++ ${DEVICES} is running the expected version ${CFG_VERSION}\n  append=True
    END

Step 3 - Change the DEVICES variable to a list of devices

As the Parameter File is a YAML file, you'll use YAML syntax to define the list, as in the following example.

In the Parameter File editor:

Replace line 1 in your Parameter File with the code in lines 1-5 below


DEVICES:
    - C8Kv-01
    - CSR1Kv-01
    - XR9Kv-01
    - N9Kv-01

EXP_XE_8K_VERSION:  17.12.2

Step 4 - Edit the Verify Software Versions step to iterate over devices

Your testbed devices are running 4 different sofware versions on 3 different Cisco operating systems, so editing this procedure to iterate over all the devices in your testbed and verify that they're all running the expected software version will require a bit more logic than the previous step.

First, as in the step above, you'll add a FOR loop to iterate over the devices. Second, you'll add logic to conditionally execute keywords based on device attributes that you already provided when creating your device inventory on the Devices page.

Beginning on line 27 of your Job File, delete your code and replace it with the highlighted code below to add a FOR loop


*** Settings ***
Library  CXTA
Resource  cxta.robot

Library  BuiltIn
Library  Collections

Suite Setup         Run Keywords
...                 load testbed

Suite Teardown      Run Keywords
...                 Disconnect From All Devices

*** Test Cases ***
1. CONNECT TO DEVICES
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${status}=  Run Keyword And Ignore Error  connect to device "${DEVICE}"
        IF  '${status[0]}' == 'FAIL'
            Fail  ++UNSUCCESSFUL++ ${DEVICE} not connected
        ELSE
            set test message  ++SUCCESSFUL++ ${DEVICE} connected \n  append=True
        END
    END

2. VERIFY SOFTWARE VERSION
    FOR  ${DEVICE}  IN  @{DEVICES}

You already changed the DEVICES variable to a list of devices in the previous step, so there's no need for any further modifications to the Parameter File yet.

In the nex steps, you'll add code to conditionally execute keywords and verify software versions based on the device OS (e.g. IOS-XE vs IOS-XR vs NXOS) and device type (e.g. C8Kv vs CSR1Kv) in your testbed topology. The assumption made here is that the devices in the testbed are running the expected software versions according to each device's OS, platform, role, etc, as defined in a network deployment plan. (e.g. the hypothetical deployment plan in this example dictates that a newly inserted C8Kv device should be running IOS-XE version 17.12.2).

The testbed topology in this lab is intentionally small and simple to illustrate concepts. Your own staging environment may be comparatively larger and more complex, but the same logic could apply to conditionally execute the appropriate procedures based on your own device inventory.

Step 5 - Edit the Verify Software Versions step to get testbed attributes

Recall the topology file that you previewed earlier in the lab after adding your devices to the Devices page, and the attributes associated with each device.


testbed:
  name: CAIT Lab Topology
  alias: CAIT Lab
  credentials:
    default:
      username: admin
      password: cisco.123
devices:
<snip>
  C8Kv-01:
    alias: c8kv
    type: router
    os: iosxe
    platform: cat8k
    connections:
      defaults:
        via: ssh
      ssh:
        protocol: ssh
        ip: 10.15.101.12
<snip>

Add the following code to line 28 of your Job File


*** Settings ***
Library  CXTA
Resource  cxta.robot

Library  BuiltIn
Library  Collections

Suite Setup         Run Keywords
...                 load testbed

Suite Teardown      Run Keywords
...                 Disconnect From All Devices

*** Test Cases ***
1. CONNECT TO DEVICES
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${status}=  Run Keyword And Ignore Error  connect to device "${DEVICE}"
        IF  '${status[0]}' == 'FAIL'
            Fail  ++UNSUCCESSFUL++ ${DEVICE} not connected
        ELSE
            set test message  ++SUCCESSFUL++ ${DEVICE} connected \n  append=True
        END
    END

2. VERIFY SOFTWARE VERSION
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${os}=    from testbed devices get "${DEVICE}.os"

This step introduces a new keyword. The from testbed devices get "${attr}" keyword from the CXTA.robot.Testbed library gets a specific attribute from the devices in the testbed, based on the attribute key passed to it. The value for the os attribute is fetched in this example, and stored in a local variable for use in subsequent procedures.

Step 6 - Add conditional logic for IOS-XE C8Kv devices

You'll be able to reuse the code you developed earlier when verifying the software version on a single IOS-XE device, only now you'll nest it within IF-ELSE logic.

You've already used IF-ELSE statements to conditionally set test messages based on a returned status. Next, you'll use them to conditionally execute code based on the device atttributes fetched from your topology file. This is necessary because the parser schema is different for each operating system, and the correct parser key for the operating system must be used. Also, each device in your testbed is running a different version of software, so different variables are used in this example.

Add the following highlighted code to lines 29-38 of your Job File


*** Settings ***
Library  CXTA
Resource  cxta.robot

Library  BuiltIn
Library  Collections

Suite Setup         Run Keywords
...                 load testbed

Suite Teardown      Run Keywords
...                 Disconnect From All Devices

*** Test Cases ***
1. CONNECT TO DEVICES
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${status}=  Run Keyword And Ignore Error  connect to device "${DEVICE}"
        IF  '${status[0]}' == 'FAIL'
            Fail  ++UNSUCCESSFUL++ ${DEVICE} not connected
        ELSE
            set test message  ++SUCCESSFUL++ ${DEVICE} connected \n  append=True
        END
    END

2. VERIFY SOFTWARE VERSION
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${os}=    from testbed devices get "${DEVICE}.os"
        IF    "${os}" == "iosxe" and "8K" in "${DEVICE}"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT['version']}  version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_XE_8K_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_XE_8K_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END

Step 7 - Add conditional logic for IOS-XE CSR1Kv devices

In the previous step, you added conditional logic to execute code if the os equals "iosxe" and the device hostname includes "8K". Next, you'll add conditional logic to execute code for IOS-XE CSR1Kv devices.

Add the following highlighted code to lines 39-48 of your Job File


*** Settings ***
Library  CXTA
Resource  cxta.robot

Library  BuiltIn
Library  Collections

Suite Setup         Run Keywords
...                 load testbed

Suite Teardown      Run Keywords
...                 Disconnect From All Devices

*** Test Cases ***
1. CONNECT TO DEVICES
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${status}=  Run Keyword And Ignore Error  connect to device "${DEVICE}"
        IF  '${status[0]}' == 'FAIL'
            Fail  ++UNSUCCESSFUL++ ${DEVICE} not connected
        ELSE
            set test message  ++SUCCESSFUL++ ${DEVICE} connected \n  append=True
        END
    END

2. VERIFY SOFTWARE VERSION
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${os}=    from testbed devices get "${DEVICE}.os"
        IF    "${os}" == "iosxe" and "8K" in "${DEVICE}"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT['version']}  version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_XE_8K_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_XE_8K_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END
        ELSE IF    "${os}" == "iosxe" and "1K" in "${DEVICE}"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT['version']}  version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_XE_1K_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_XE_1K_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END

There are only three minor changes in this code, relative to the last step. First, notice the ELSE IF in line 39. ELSE IF branches are evaluated in the order in which they are coded in the Job File, and their conditions are evaluated if preceding conditions are not true. The block of code following the ELSE IF will be executed if the condition is true, ignoring any subsequent branches.

Second, the code has changed to check that "1K" is present in the device hostname to catch the CSR1Kv devices in your topology. Since the CSR1Kv device also runs IOS-XE, the parser schemas is the same and does not need to change in this IF-ELSE branch.

And third, since the IOS-XE CSR1Kv devices run a different software version than the IOS-XE C8Kv devices in your topology, a new variable, EXP_XE_1K_VERSION, has been introduced. You'll define this variable in a later step.

Step 8 - Add conditional logic for IOS-XR devices

Next, you'll add conditional logic to execute code for the IOS-XR routers in your topology.

Add the following highlighted code to lines 49-58 of your Job File


*** Settings ***
Library  CXTA
Resource  cxta.robot

Library  BuiltIn
Library  Collections

Suite Setup         Run Keywords
...                 load testbed

Suite Teardown      Run Keywords
...                 Disconnect From All Devices

*** Test Cases ***
1. CONNECT TO DEVICES
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${status}=  Run Keyword And Ignore Error  connect to device "${DEVICE}"
        IF  '${status[0]}' == 'FAIL'
            Fail  ++UNSUCCESSFUL++ ${DEVICE} not connected
        ELSE
            set test message  ++SUCCESSFUL++ ${DEVICE} connected \n  append=True
        END
    END

2. VERIFY SOFTWARE VERSION
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${os}=    from testbed devices get "${DEVICE}.os"
        IF    "${os}" == "iosxe" and "8K" in "${DEVICE}"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT['version']}  version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_XE_8K_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_XE_8K_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END
        ELSE IF    "${os}" == "iosxe" and "1K" in "${DEVICE}"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT['version']}  version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_XE_1K_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_XE_1K_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END
        ELSE IF    "${os}" == "iosxr"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT}  software_version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_XR_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_XR_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END

Notice that the "os" attribute has been changed to "iosxr". Since there is only one IOS-XR device type in your topology, no additional criteria to identify the device type is needed/used in this step.

However, the key used to get the IOS-XR software version in the parser has changed in accordance with the published IOS-XR show version parser schema.


{
'operating_system': <class 'str'>,
'software_version': <class 'str'>,
'uptime': <class 'str'>,
Optional  (str) image: <class 'str'>,
Optional  (str) device_family: <class 'str'>,
Optional  (str) processor: <class 'str'>,
Optional  (str) processor_memory_bytes: <class 'str'>,
Optional  (str) chassis_detail: <class 'str'>,
Optional  (str) config_register: <class 'str'>,
Optional  (str) rp_config_register: <class 'str'>,
Optional  (str) main_mem: <class 'str'>,
Optional  (str) built_by: <class 'str'>,
Optional  (str) built_on: <class 'str'>,
Optional  (str) built_host: <class 'str'>,
}

Also, you've added a new variable for the expected IOS-XR version (EXP_XR_VERSION). You'll define this variable in a later step.

Step 9 - Add conditional logic for NXOS devices

Finally, you'll add conditional logic to execute code for the NXOS devices in your topology.

Add the following highlighted code to lines 59-70 of your Job File


*** Settings ***
Library  CXTA
Resource  cxta.robot

Library  BuiltIn
Library  Collections

Suite Setup         Run Keywords
...                 load testbed

Suite Teardown      Run Keywords
...                 Disconnect From All Devices

*** Test Cases ***
1. CONNECT TO DEVICES
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${status}=  Run Keyword And Ignore Error  connect to device "${DEVICE}"
        IF  '${status[0]}' == 'FAIL'
            Fail  ++UNSUCCESSFUL++ ${DEVICE} not connected
        ELSE
            set test message  ++SUCCESSFUL++ ${DEVICE} connected \n  append=True
        END
    END

2. VERIFY SOFTWARE VERSION
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${os}=    from testbed devices get "${DEVICE}.os"
        IF    "${os}" == "iosxe" and "8K" in "${DEVICE}"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT['version']}  version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_XE_8K_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_XE_8K_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END
        ELSE IF    "${os}" == "iosxe" and "1K" in "${DEVICE}"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT['version']}  version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_XE_1K_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_XE_1K_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END
        ELSE IF    "${os}" == "iosxr"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT}  software_version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_XR_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_XR_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END
        ELSE IF    "${os}" == "nxos"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT['platform']['software']}  system_version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_NXOS_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_NXOS_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END
        END
    END

Notice that the "os" attribute has been changed to "nxos". Similarly to IOS-XR, since there is only one NXOS device type in your topology, an additional device type check is not needed/used in this step. Also like IOS-XR, NXOS has its own parser schema, so the key used to get the NXOS software version has changed in accordance with the published NXOS show version parser schema.


{
'platform': {
    <snip>
    },
    'software': {
    Optional  (str) bios_version: <class 'str'>,
    Optional  (str) bios_compile_time: <class 'str'>,
    Optional  (str) kickstart_version: <class 'str'>,
    Optional  (str) kickstart_compile_time: <class 'str'>,
    Optional  (str) kickstart_image_file: <class 'str'>,
    Optional  (str) system_version: <class 'str'>,
    Optional  (str) system_compile_time: <class 'str'>,
    Optional  (str) system_image_file: <class 'str'>,
    },
    },
}

Also, you've added a new variable for the expected NXOS version (EXP_NXOS_VERSION). You'll define this variable, and the other new variables introduced above, in the next step.

Step 10 - Define the variables introduced in the last steps

In the Parameter File editor:

Add the following code to lines 8-10


DEVICES:
  - C8Kv-01
  - CSR1Kv-01
  - XR9Kv-01
  - N9Kv-01

EXP_XE_8K_VERSION:  17.12.2
EXP_XE_1K_VERSION:  17.3.8a
EXP_XR_VERSION:  7.4.1
EXP_NXOS_VERSION:  9.3(13)

Step 11 - Save

Congratulations! You've added all of the procedures and variables needed to the run this test case.

Confirm that your Script Text and Parameter File match the following, and copy/paste the complete output if needed


*** Settings ***
Library  CXTA
Resource  cxta.robot

Library  BuiltIn
Library  Collections

Suite Setup         Run Keywords
...                 load testbed

Suite Teardown      Run Keywords
...                 Disconnect From All Devices

*** Test Cases ***
1. CONNECT TO DEVICES
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${status}=  Run Keyword And Ignore Error  connect to device "${DEVICE}"
        IF  '${status[0]}' == 'FAIL'
            Fail  ++UNSUCCESSFUL++ ${DEVICE} not connected
        ELSE
            set test message  ++SUCCESSFUL++ ${DEVICE} connected \n  append=True
        END
    END

2. VERIFY SOFTWARE VERSION
    FOR  ${DEVICE}  IN  @{DEVICES}
        ${os}=    from testbed devices get "${DEVICE}.os"
        IF    "${os}" == "iosxe" and "8K" in "${DEVICE}"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT['version']}  version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_XE_8K_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_XE_8K_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END
        ELSE IF    "${os}" == "iosxe" and "1K" in "${DEVICE}"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT['version']}  version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_XE_1K_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_XE_1K_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END
        ELSE IF    "${os}" == "iosxr"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT}  software_version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_XR_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_XR_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END
        ELSE IF    "${os}" == "nxos"
            select device "${DEVICE}"
            ${VERSION_OUTPUT}=  parse "show version" on device "${DEVICE}"
            ${CFG_VERSION}=  Get From Dictionary  ${VERSION_OUTPUT['platform']['software']}  system_version
            ${status}=  Run Keyword And Return Status  should be true  '${CFG_VERSION}' == '${EXP_NXOS_VERSION}'
            IF  '${status}' == 'False'
                Fail  ++UNSUCCESSFUL++ Device ${DEVICE} is not running the expected version ${EXP_NXOS_VERSION}
            ELSE
                set test message  ++SUCCESSFUL++ ${DEVICE} is running the expected version ${CFG_VERSION}\n  append=True
            END
        END
    END


DEVICES:
    - C8Kv-01
    - CSR1Kv-01
    - XR9Kv-01
    - N9Kv-01

EXP_XE_8K_VERSION:  17.12.2
EXP_XE_1K_VERSION:  17.3.8a
EXP_XR_VERSION:  7.4.1
EXP_NXOS_VERSION:  9.3(13)

Click on the SAVE button in the upper right-hand corner of the page

After clicking the SAVE button, CXTM will return you to the Job File page.

Step 12 - Navigate Back to Project Home

From your test case Job File Results page:

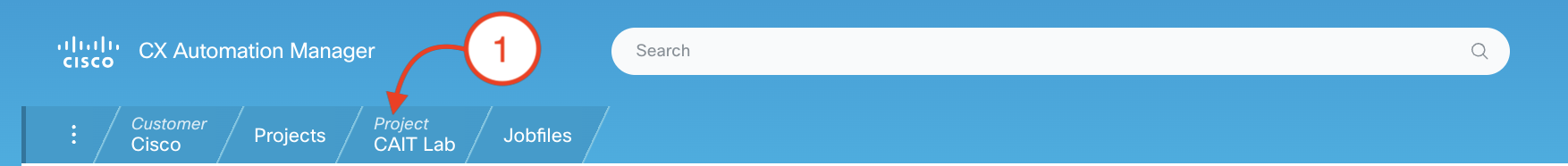

Click on the Project CAIT Lab button

Continue to the next section to create additional test cases to verify the interface state on your devices.

Devices

USER: admin

PASS: cisco.123

CSR1Kv-01 : 10.15.101.11

C8Kv-01 : 10.15.101.12

XR9Kv-01 : 10.15.101.13

N9Kv-01 : 10.15.101.14

CXTM

USER: pod01

PASS: cisco.123

GitLab

USER: pod01

PASS: cisco.123

Edit Job File

Step 1 - Return to the Job File editor

Step 2 - Edit the Connect to Devices step to iterate over devices

Step 3 - Change the DEVICES variable to a list of devices

Step 4 - Edit the Verify Software Versions step to iterate over devices

Step 5 - Edit the Verify Software Versions step to get testbed attributes

Step 6 - Add conditional logic for IOS-XE C8Kv devices

Step 7 - Add conditional logic for IOS-XE CSR1Kv devices

Step 8 - Add conditional logic for IOS-XR devices

Step 9 - Add conditional logic for NXOS devices

Step 10 - Define the variables introduced in the last steps

Step 11 - Save

Step 12 - Navigate Back to Project Home
